Datex Ohmeda Compact S5 Monitor

Datex Ohmeda Compact S5 Monitor

The Datex Ohmeda is a patient vital sign monitor that includes
SP02, ETCO2, ECG, NIBP and printer and is used in hospitals
as a cardiac monitor and anesthesia monitor. The monitor
comes fully refurbished,  patient ready, bio-med certified
with a 1 year warranty. Call us to order or for more information
toll-free at (844) 990-0460.

DATEX-OHMEDA S/5 F-CM1-05 Anesthesia Monitor


Datex Ohmeda S5 Patient Monitor Video

Used in surgery centers in operating rooms and post anesthesia care units.

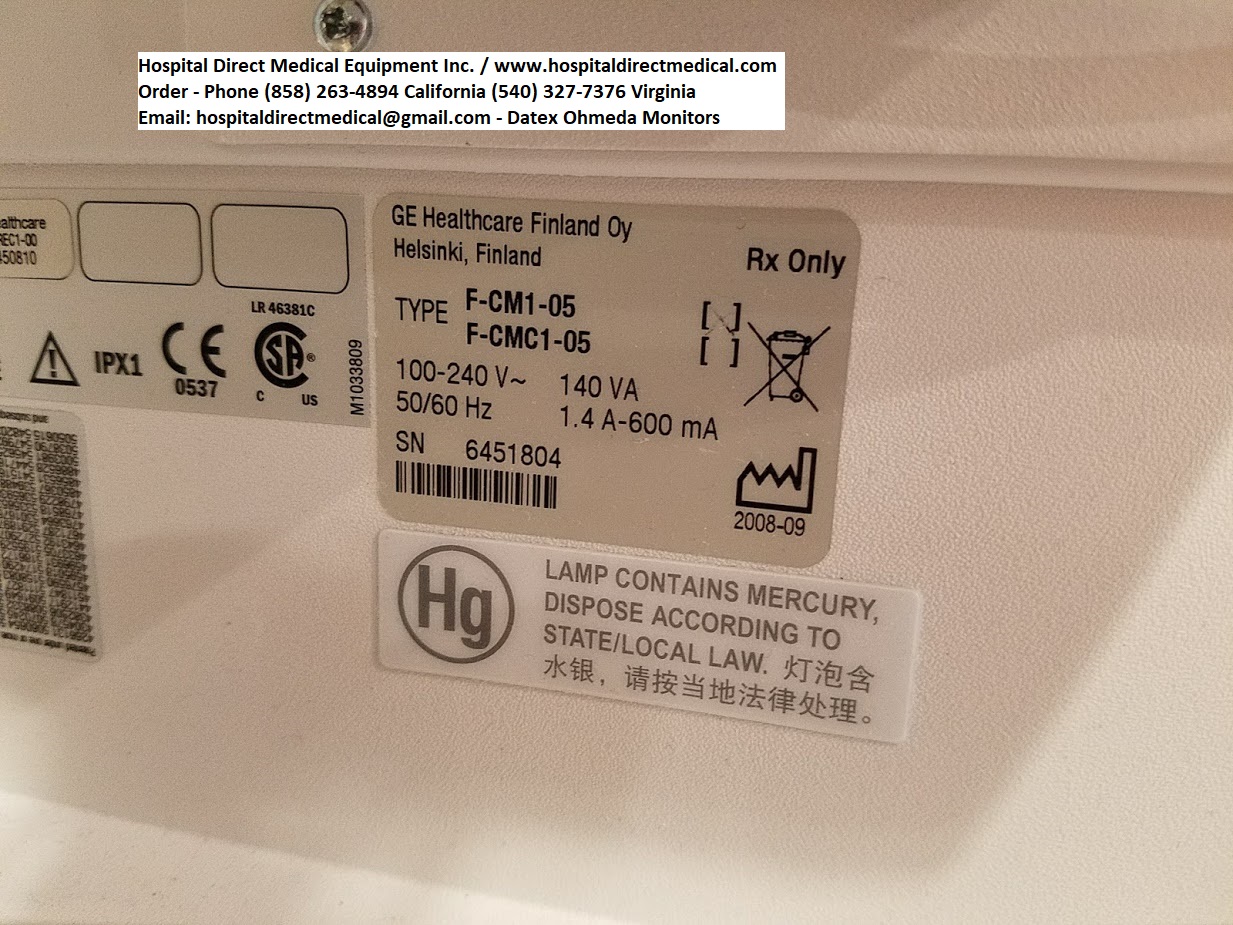

Datex Ohmeda S5 compact anesthesia monitor Datex Ohmeda F CM 1 05 04

Datex Ohmeda S5 compact anesthesia monitor Datex Ohmeda F CM 1 05 04

Datex Ohmeda Compact S5

The Datex S5 Compact monitor delivers anesthesia monitoring along with peace of mind, allowing for vital sign transmission and arrhythmia detection you can trust. While well suited for PACU and day surgery, with 6 user-configurable modes, the S5 Compact remains a diligent partner in all aspects of facility monitoring needs.

  • Ideally suited for PACU and day surgery monitoring
  • Small footprint bedside monitor with extra-large 12.1 inch color display
  • Large waveforms and numerics for easy viewing from long distances and multiple viewing angles • Basic hemodynamics and full airway gas measurements
  • Up to 8 waveforms and 4 numeric digit fields can be displayed
  • 24-hour graphical and numeric trends can be displayed and used to access historical data
  • Color-coded prioritized and adjustable alarms that can be managed at the monitor or optionally from the S/5TM Network and Central
  • Optional extended arrhythmia analysis
  • Waveform snapshots to store and recall waveform samples for later analysis
  • Intuitive easy-to-use S/5 interface designed for the anesthesia care process
  • Six user-configurable display pages for each mode
  • S/5TM Device Interfacing Solution support for other patient care devices brings information to the Compact Monitor display screen
  • Rugged, shock resistant design offers a built-in battery and handle for intra-hospital transport monitoring with roll stand, wall and bed mounting options available
  • Integration of transport data with optional MemCardTM
  • Optional built-in, three-channel thermal array recorder
  • Compatible with Datex-Ohmeda S/5 Network and Central for monitor-to-monitor communication and centralizing viewing

Datex Ohmeda Compact S5 Specifications

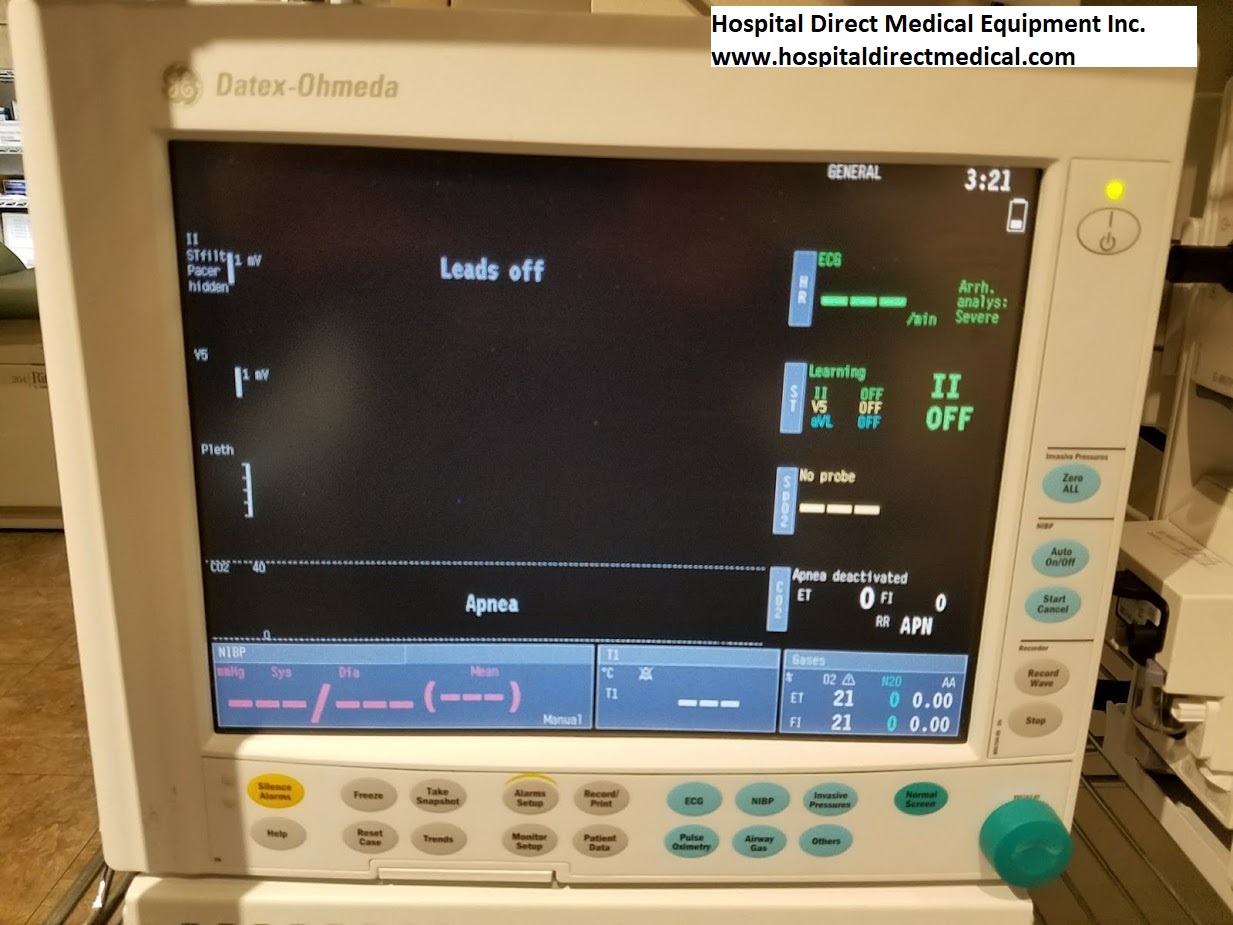

Display

  • Display Size: 12.1 in diagonal
  • Display Type: Active matrix color TFT LCD
  • Display Resolution: SVGA resolution, 800 x 600
  • Number of Waveforms: Up to 8
  • Number of Digit Fields: Up to 4
  • Display Layout and Colors: User-configurable
  • Integrated Command Board with direct function keys, menu keys and ComWheelTM for selections and adjustments in menus

Frame

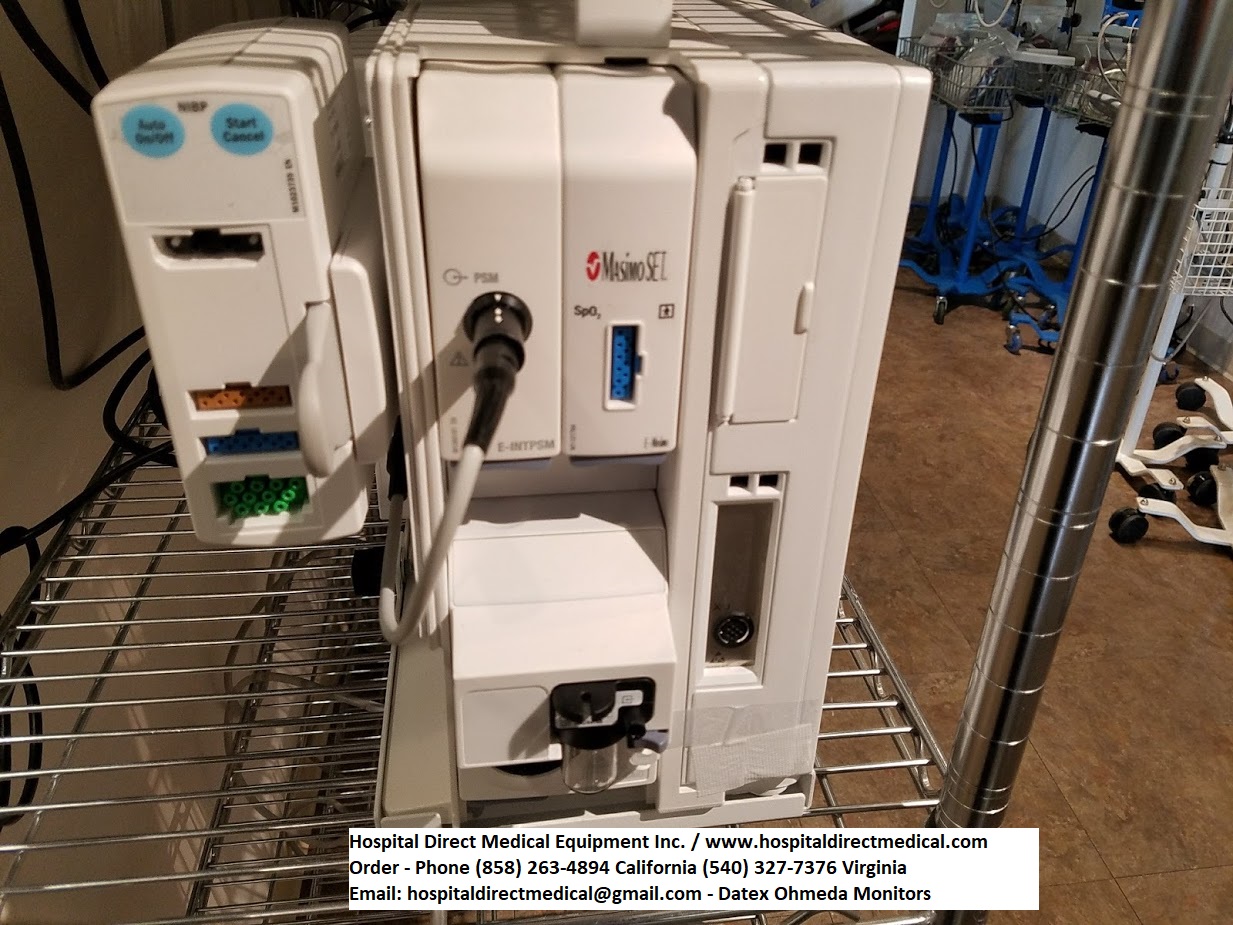

  • Module Capacity: 2+2 module slots
  • I/O Connections: RS-232 computer serial output, 2 fixed analog outputs, connector for remote controller, external keyboard and barcode reader with Y-cable, defibrillation sync, Nurse call
  • Device Interfacing Solution: Connector for up to 10 simultaneous S/5 DIS interfaces
  • Network: Compatible with Datex-Ohmeda S/5 Network and Central for monitor-to-monitor communication, centralized viewing and remote alarm management
  • Wireless Network Option: Allows the monitor to utilize both the wired and wireless network (WLAN) for centralized monitoring
  • MemCard Option: Activates MemCards to transfer the trended data of patient vital signs
  • Printing: Laser printing capabilities: serial printer supporting PCL5 language or network printer (serial/parallel converter, additional accessory)
  • Recorder Option: Built-in three-channel thermal array recorder • Mounting Options: Bed mount, wall mount and roll stand

Dimensions

  • Size: 13.2” W x 8.1” D x 13.4” H (335 x 205 x 340 mm)
  • Weight: 24.2 lbs/11 kg

Battery

  • Type: Built-in NiMH battery
  • Capacity: Up to 1.5 h typical on full charge at 23°C/73°C; with combination: M-NESTPR, M-miniC and N-CMW typically 2h
  • Recharging: When connected to main power
  • Charging Time: 10 hours to full capacity
  • Battery operation alarm: Early warning – ‘Battery low’ note, Final warning -’Battery low’ alarm
  • Battery state indicator: Battery bar displayed on the screen

Alarms

  • Alarm system classified into three categories according to priority in anesthesia; color and audio tone coded
  • Central alarm display and adjustment page
  • 10 min graphical mini-trends referenced to set alarm limits

Modes

  • Modes: Up to 6 user-configurable modes for care-specific configurations
  • Pages: Up to 6 user-configurable display pages for each mode

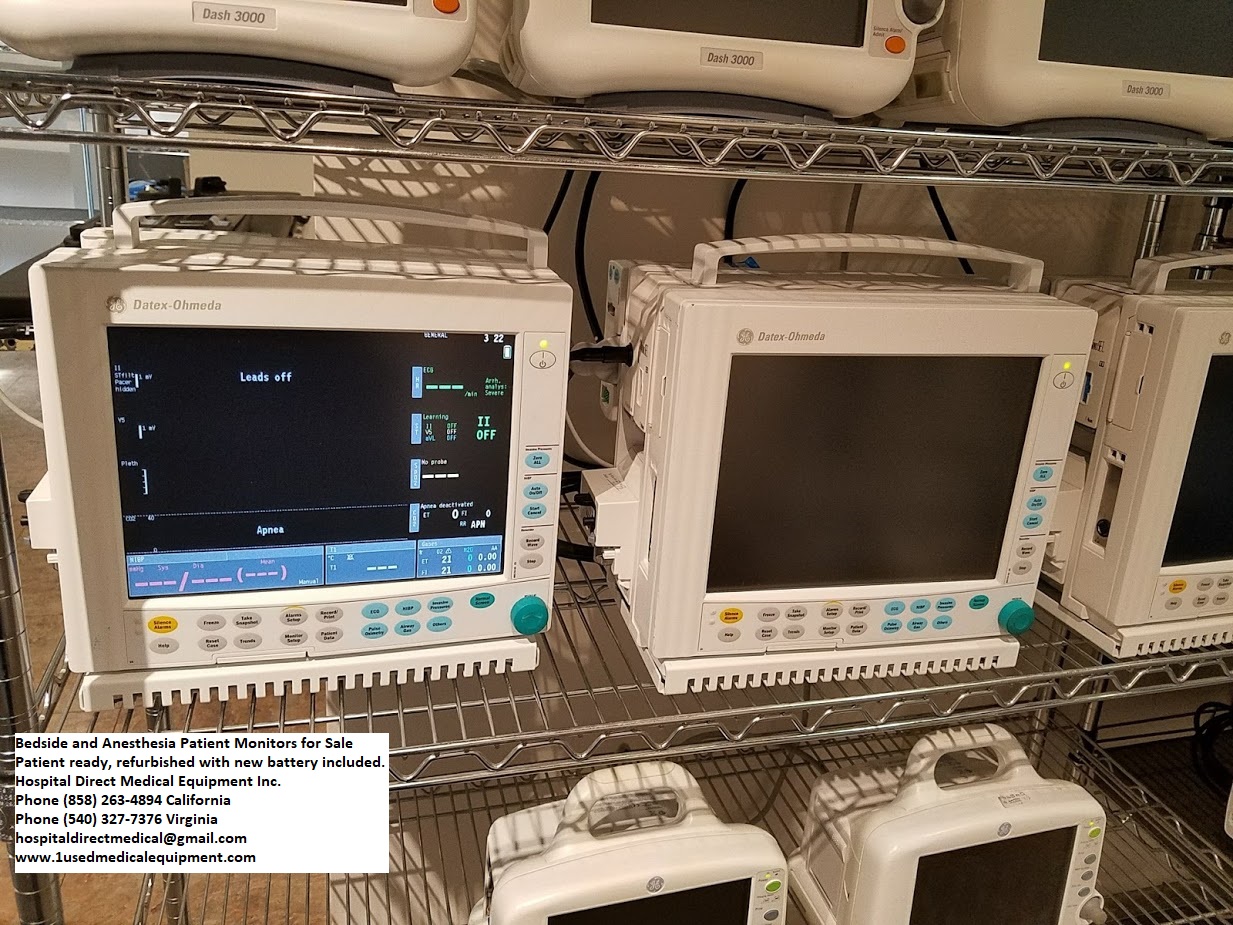

Datex Ohmeda anesthesia monitor Datex Ohmeda F CM 1 05 refurbished

Datex Ohmeda anesthesia monitor Datex Ohmeda F CM 1 05 refurbished

Datex Ohmeda anesthesia monitor Datex Ohmeda F CM 1 05 refurbished

Datex Ohmeda anesthesia monitor Datex Ohmeda F CM 1 05 refurbished

Datex Ohmeda ETco2 anesthesia monitor Datex Ohmeda F CM 1 05

Datex Ohmeda anesthesia monitor Datex Ohmeda F CM 1 05 refurbished

We sell a wide variety of patient vital sign monitors from Datex Ohmeda,
Philips, GE, Datascope, Alaris, Oridion and Welch Allyn. Contact us
for pricing and other patient vital sign monitors in stock. We can
ship anesthesia and cardiac monitors anywhere in the USA and
anywhere in the world.
